Bourns, Inc.

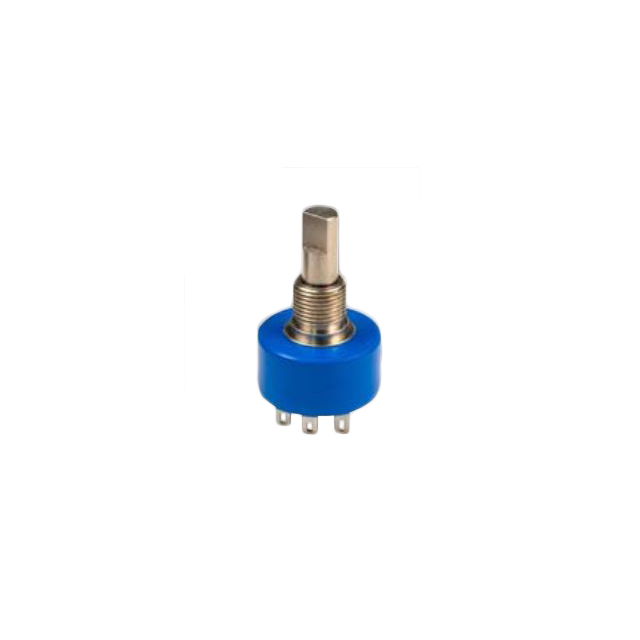

DMS22B5A1CAFL336N
Sensors
DMS22B5A1CAFL336N
54-DMS22B5A1CAFL336N
NON CONTACTING ENCODER
In Stock : 36
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $35.79370
- $35.79
ADD TO CART
QUICK ORDER
$35.79370
$35.79
Tech Specifications
Unit Weight
0.677613 oz
Operating Life (Cycles)
50M
PCB changed
6
HTS
8536.50.90.65
Output Type
Digital, SSI
ECCN (US)
EAR99
Encoder Type
Magnetic
Built in Switch
No
Product Status
Active
RoHS
RoHS Compliant
Minimum Operating Temperature (°C)
-40
Resistance (kOhm)
10
Maximum Operating Temperature (°C)
125
Voltage - Supply
4.5V ~ 5.5V
Detent
No
REACH Status
REACH Affected
Package Height
33.53
Mfr
Bourns Inc.
Maximum Operating Supply Voltage (V)
5.5
EU RoHS
Compliant with Exemption
Diameter
22.23
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Mounting Style
Bushing Mount
Linearity Error (%)
±0.3
Electrical Travel
360°
Termination Style
PC Pin
SVHC Exceeds Threshold
Yes
Actuator Type
1/4" Dia Flatted End
ECCN
EAR99
Vibration Rating (g)
15
Rotational Life (Cycles Min)
50M
Orientation
Vertical
Mounting Type
Panel Mount
Mechanical Travel
360°
Pin Count
6
Shock Rating (g)
50
Series
DMS22B
Type
Rotary
Maximum Operating Torque (N.m)
0.0106
Linearity
Yes
SVHC
Yes
Pulses per Revolution
16
HTSUS
8543.70.4500
Package
Tray
USHTS
8543709860
Resolution
12Bit
DMS22B5A1CAFL336N Documents
Download datasheets and manufacturer documentation for DMS22B5A1CAFL336N
