ams OSRAM

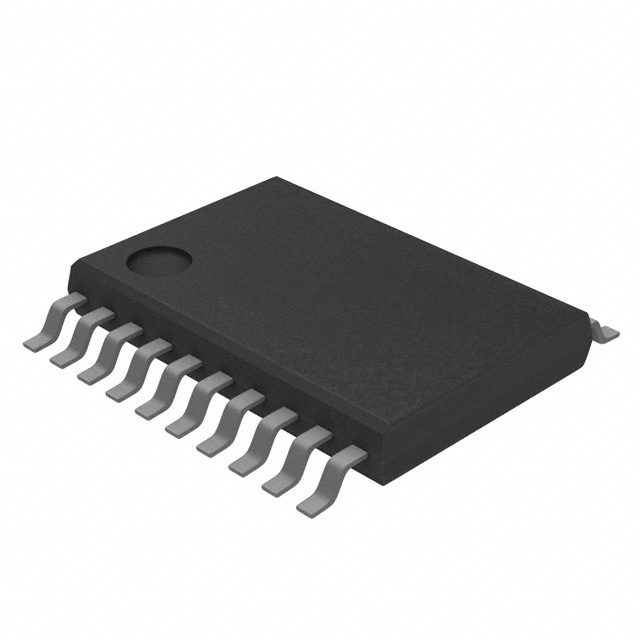

AS5311-ATST
Sensors
AS5311-ATST
54-AS5311-ATST
ROTARY ENCODER MAGNETIC
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
PCB changed
20
HTS
8542.39.00.60
Output Type
PWM
ECCN (US)
EAR99
Encoder Type
Magnetic
PPAP
No
Built in Switch
No
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
125
Supplier Package
TSSOP
Package / Case
TSSOP-20
Voltage - Supply
3.3V, 5V
Detent
No
REACH Status
REACH Unaffected
Package Height
1
Mfr
ams-OSRAM USA INC.
Maximum Operating Supply Voltage (V)
3.6|5.5
EU RoHS
Compliant
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Mounting Style
SMD/SMT
Termination Style
SMD (SMT) Tab
Actuator Type
External Magnet, Not Included
ECCN
EAR99
Rotational Life (Cycles Min)
-
Package Length
6.5
Orientation
-
Mounting Type
Surface Mount
Standard Package Name
SO
Pin Count
20
Mounting
Surface Mount
Series
AS5311
Type
Rotary
Moisture Sensitive
Yes
Linearity
Yes
Part Status
Active
Pulses per Revolution
-
HTSUS
8542.39.0001
Package
Tape & Reel (TR)
Package Width
4.4
USHTS
8542390060
Resolution
12Bit
Base Product Number
AS5311
