ams OSRAM

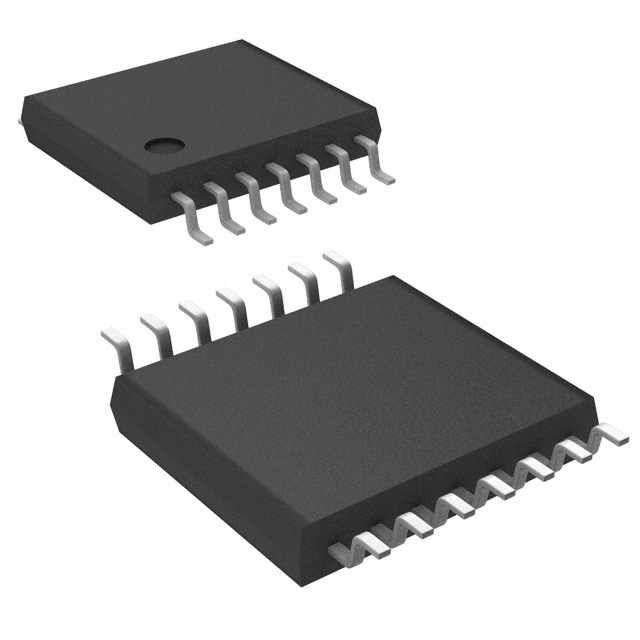

AS5147-HTST
Sensors
AS5147-HTST
54-AS5147-HTST
ROTARY ENCODER MAGNETIC PROG
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Encoder Type
Magnetic
PPAP
Unknown
Built in Switch
No
Product Status
Active
RoHS
RoHS Compliant
Automotive
Yes
Tradename
DAEC
Supplier Package
TSSOP
Voltage - Supply
3V ~ 3.6V, 4.5V ~ 5.5V
REACH Status
REACH Unaffected
Maximum Operating Supply Voltage (V)
3.6|5.5
EU RoHS
Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Termination Style
SMD (SMT) Tab
ECCN
EAR99
Grade
Automotive
Rotational Life (Cycles Min)
-
Orientation
-
Mounting Type
Surface Mount
Standard Package Name
SO
Pin Count
14
Mounting
Surface Mount
Qualification
AEC-Q100
Moisture Sensitive
Yes
Linearity
No
Lead Shape
Gull-wing
Pulses per Revolution
Programmable
HTSUS
8542.39.0001
Package
Tape & Reel (TR)
USHTS
8542390060
Resolution
11Bit|14Bit
PCB changed
14
HTS
8542.39.00.60
Output Type
Commutation, PWM, SPI, Quadrature with index (Incremental)
ECCN (US)
EAR99
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
150
Detent
No
Package Height
1
Mfr
ams-OSRAM USA INC.
RoHS Status
RoHS Compliant
Actuator Type
External Magnet, Not Included
Package Length
5
Series
AS5147
Type
Rotary
Part Status
Active
Package Width
4.4
Base Product Number
AS5147
AS5147-HTST Documents
Download datasheets and manufacturer documentation for AS5147-HTST
