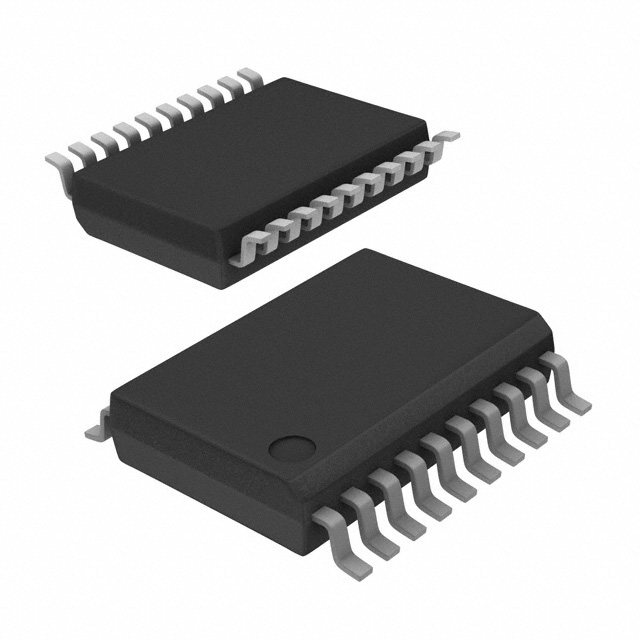

AS5134-ZSSM
Sensors
AS5134-ZSSM
54-AS5134-ZSSM
ROTARY ENCODER MAGNETIC
In Stock : 1661
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $5.15616
- $5.16
- 10+
- $4.70120
- $47.01
- 100+
- $4.09459
- $409.46
- 1000+
- $3.94294
- $3942.94
ADD TO CART
QUICK ORDER
$5.15616
$5.16
Tech Specifications
Unit Weight
0.005291 oz
Release Point Min/Max (Brp)
-
Encoder Type
Magnetic
PPAP
Unknown
Built in Switch
No
Product Status
Active
RoHS
RoHS Compliant
Automotive
Yes
Supplier Package
SSOP
Voltage - Supply
4.4V ~ 5.5V
REACH Status
REACH Unaffected
Maximum Operating Supply Voltage (V)
5.5
EU RoHS
Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Termination Style
SMD (SMT) Tab
ECCN
EAR99
Grade
Automotive
Rotational Life (Cycles Min)
-
Supplier Temperature Grade
Automotive
Orientation
-
Mounting Type
Surface Mount
Standard Package Name
SO
Pin Count
20
Mounting
Surface Mount
Qualification
AEC-Q100
Operating Point Min/Max
20 mT to 80 mT
Moisture Sensitive
Yes
Linearity
Yes
Pulses per Revolution
-
HTSUS
8542.39.0001
Package
Tape & Reel (TR)
USHTS
8542390060
Resolution
8.5Bit
PCB changed
20
HTS
8543.70.98.60
Output Type
Quadrature (Incremental)
ECCN (US)
EAR99
Maximum Output Current
-
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
140
Operating Supply Current
22 mA
Detent
No
Package Height
1.73
Mfr
ams-OSRAM USA INC.
Maximum Operating Temperature
+ 140 C
RoHS Status
RoHS Compliant
Mounting Style
SMD/SMT
Electrical Travel
90°
Actuator Type
External Magnet, Not Included
Package Length
7.2
Mechanical Travel
360°
Minimum Operating Temperature
- 40 C
Series
AS5134
Type
Rotary
Operating Supply Voltage
5 V
Part Status
Active
Package Width
5.3
Base Product Number
AS5134
