ams OSRAM

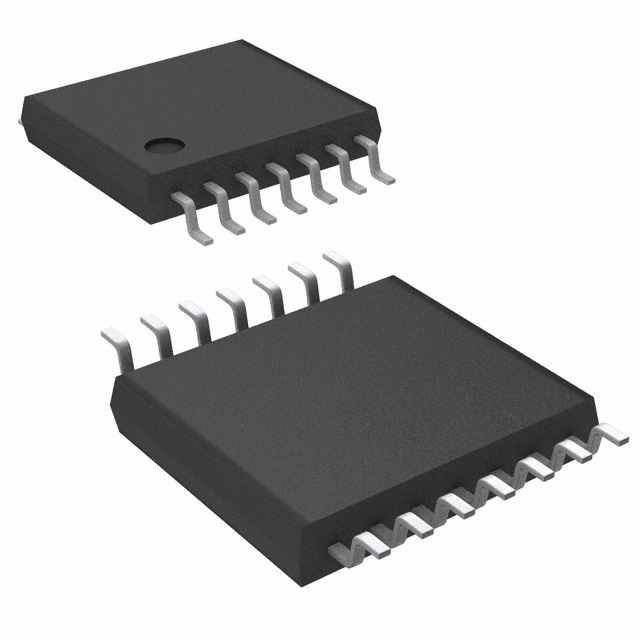

AS5047P-ATSM
Sensors
AS5047P-ATSM
54-AS5047P-ATSM
ROTARY ENCODER MAGNETIC PROG
In Stock : 4380
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $4.22611
- $4.23
- 10+
- $3.73428
- $37.34
- 30+
- $3.15634
- $94.69
- 100+
- $2.85991
- $285.99
- 500+
- $2.72412
- $1362.06
- 1000+
- $2.66285
- $2662.85
ADD TO CART
QUICK ORDER
$4.22611
$4.23
Tech Specifications
Unit Weight
0.206132 oz
Release Point Min/Max (Brp)
-
Encoder Type
Magnetic
PPAP
No
Built in Switch
No
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Supplier Package
TSSOP
Package / Case
TSSOP-14
Voltage - Supply
3V ~ 3.6V, 4.5V ~ 5.5V
REACH Status
REACH Unaffected
Maximum Operating Supply Voltage (V)
5.5
EU RoHS
Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Termination Style
SMD (SMT) Tab
ECCN
EAR99
Rotational Life (Cycles Min)
-
Orientation
-
Mounting Type
Surface Mount
Standard Package Name
SO
Pin Count
14
Mounting
Surface Mount
Operating Point Min/Max
35 mT to 70 mT
Moisture Sensitive
Yes
Linearity
No
Lead Shape
Gull-wing
Pulses per Revolution
Programmable
HTSUS
8542.39.0001
Package
Tape & Reel (TR)
USHTS
8542390060
Resolution
14Bit|12Bit
PCB changed
14
HTS
8543.70.98.60
Output Type
PWM
ECCN (US)
EAR99
Maximum Output Current
1 mA
Supply Voltage - Min
4.5 V, 3 V
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
125
Operating Supply Current
15 mA
Detent
No
Package Height
1
Mfr
ams-OSRAM USA INC.
Maximum Operating Temperature
+ 125 C
Supply Voltage - Max
5.5 V, 3.6 V
RoHS Status
RoHS Compliant
Mounting Style
SMD/SMT
Actuator Type
External Magnet, Not Included
Package Length
5
Minimum Operating Temperature
- 40 C
Series
AS5047P
Type
Rotary
Operating Supply Voltage
5 V, 3.3 V
Part Status
Active
Package Width
4.4
Pd - Power Dissipation
150 mW
Base Product Number
AS5047
