ams OSRAM

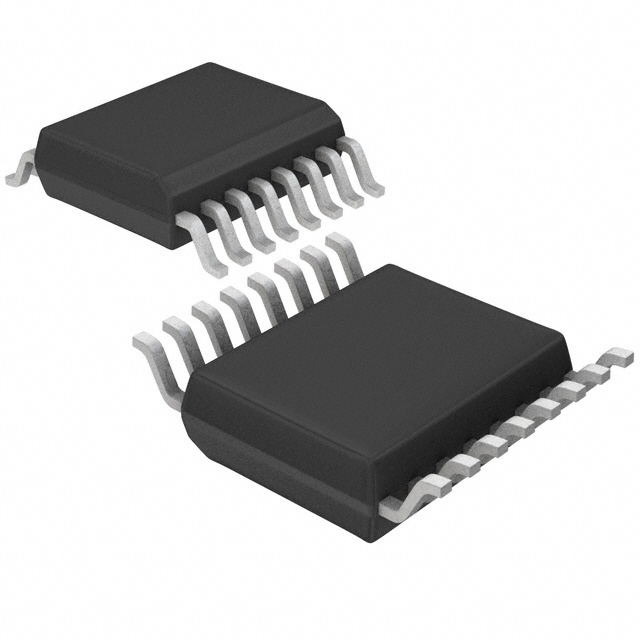

AS5030-ATST
Sensors
AS5030-ATST
54-AS5030-ATST
ROTARY ENCODER MAGNETIC
In Stock : 40
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $4.46012
- $4.46
- 10+
- $4.00204
- $40.02
- 100+
- $3.37522
- $337.52
- 1000+
- $3.20646
- $3206.46
ADD TO CART
QUICK ORDER
$4.46012
$4.46
Tech Specifications
Unit Weight
1.304431 oz
Release Point Min/Max (Brp)
-
Encoder Type
Magnetic
PPAP
No
Built in Switch
No
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Supplier Package
TSSOP
Package / Case
TSSOP-16
Voltage - Supply
4.5V ~ 5.5V
REACH Status
REACH Unaffected
Maximum Operating Supply Voltage (V)
5.5
EU RoHS
Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Termination Style
SMD (SMT) Tab
ECCN
EAR99
Rotational Life (Cycles Min)
-
Orientation
-
Mounting Type
Surface Mount
Standard Package Name
SO
Pin Count
16
Mounting
Surface Mount
Operating Point Min/Max
-
Moisture Sensitive
Yes
Linearity
Yes
Pulses per Revolution
-
HTSUS
8542.39.0001
Package
Tape & Reel (TR)
USHTS
8542390060
Resolution
8Bit
PCB changed
16
HTS
8536.50.90.20
Output Type
PWM
ECCN (US)
EAR99
Maximum Output Current
-
Supply Voltage - Min
4.5 V
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
125
Operating Supply Current
-
Detent
No
Package Height
1
Mfr
ams-OSRAM USA INC.
Maximum Operating Temperature
+ 125 C
Supply Voltage - Max
5.5 V
RoHS Status
RoHS Compliant
Mounting Style
SMD/SMT
Electrical Travel
360°
Actuator Type
External Magnet, Not Included
Package Length
5
Minimum Operating Temperature
- 40 C
Series
AS5030
Type
Rotary
Operating Supply Voltage
4.5 V to 5.5 V
Part Status
Active
Package Width
4.4
Base Product Number
AS5030
AS5030-ATST Documents
Download datasheets and manufacturer documentation for AS5030-ATST
