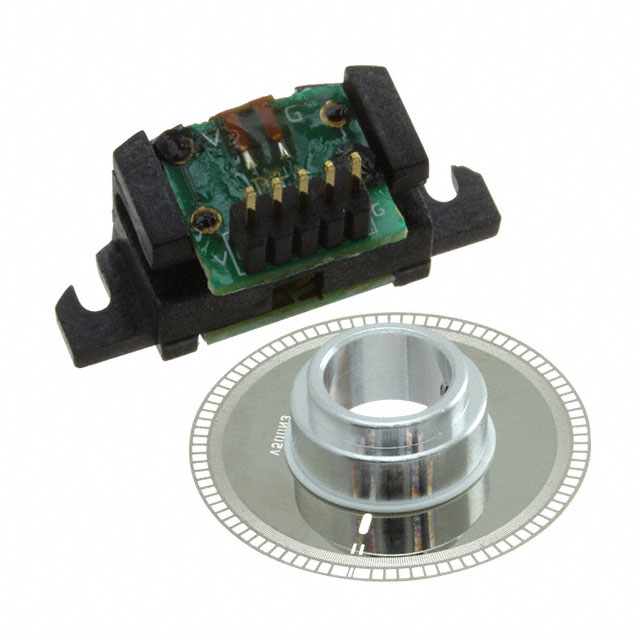

ROTARY ENCODER OPTICAL 500PPR
In Stock : 77

Need wholesale pricing? Send RFQ now for the best rates and immediate response.

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $41.60000
    • $41.6
    • 10+
    • $34.94100
    • $349.41
    • 100+
    • $28.07720
    • $2807.72
    ADD TO CART
    QUICK ORDER
    $41.60000    $41.60
    Description Tech Specifications Documents Shopping Guide

    Tech Specifications

    Unit Weight
    1.763698 oz
    Output Type
    Quadrature with Index (Incremental)
    Product
    Optical Encoders
    Encoder Type
    Optical
    Built in Switch
    No
    Product Status
    Active
    RoHS
    RoHS Compliant
    Number of Detents
    No Detent
    Number of Channels
    3 Channel
    Technology
    Transmissive
    Voltage - Supply
    5V
    Detent
    No
    REACH Status
    REACH Unaffected
    Mfr
    Broadcom Limited
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Mounting Style
    Chassis Mount
    Termination Style
    Terminal Pins
    Shaft Type
    No Shaft
    Actuator Type
    8mm Open Center
    ECCN
    EAR99
    Shaft Diameter
    8 mm
    Rotational Life (Cycles Min)
    -
    Orientation
    -
    Mounting Type
    Chassis Mount, Motors
    Size / Dimension
    28 mm
    Series
    AEDB-9140
    Type
    Incremental/Shaftless
    With Switch
    Without Switch
    Operating Supply Voltage
    5 VDC
    Pulses per Revolution
    500
    HTSUS
    8543.70.4500
    Package
    Bulk
    USHTS
    8543704500
    Resolution
    500 CPR
    Base Product Number
    AEDB-9140
