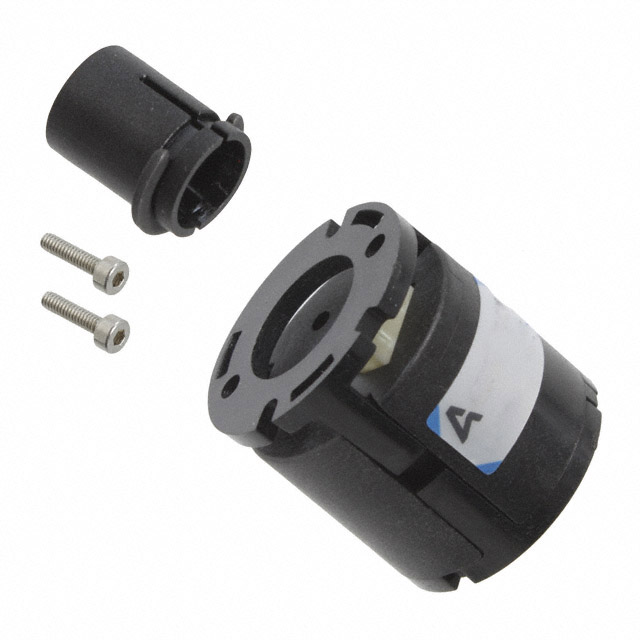

Broadcom_AEAT-6010-A06
Broadcom_AEAT-6010-A06
Broadcom

AEAT-6010-A06

Sensors
Broadcom
AEAT-6010-A06
54-AEAT-6010-A06
Broadcom-AEAT-6010-A06-datasheet-679785.pdf
Broadcom-AEAT-6010-A06-datasheets-679785.pdf
ROTARY ENCODER MAGNETIC 1024PPR
In Stock : 501

Need wholesale pricing? Send RFQ now for the best rates and immediate response.

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $43.72300
    • $43.72
    • 10+
    • $41.53680
    • $415.37
    • 100+
    • $34.97830
    • $3497.83
    • 1000+
    • $32.79216
    • $32792.16
    ADD TO CART
    QUICK ORDER
    $43.72300    $43.72
    Description Tech Specifications Documents Shopping Guide

    Tech Specifications

    Unit Weight
    11.200188 oz
    Bushing Thread
    -
    Output Type
    Binary (Absolute)
    Product
    Kits
    Encoder Type
    Magnetic
    Built in Switch
    No
    Product Status
    Active
    RoHS
    RoHS Compliant
    Shaft Length
    8.5 mm
    Number of Detents
    No Detent
    Number of Channels
    1 Channel
    Technology
    Magnetic
    Voltage - Supply
    5V
    Detent
    No
    REACH Status
    REACH Unaffected
    Mfr
    Broadcom Limited
    Maximum Operating Temperature
    + 125 C
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Mounting Style
    Chassis Mount
    Bushing Material
    -
    Termination Style
    Terminal Pins
    Shaft Type
    Round / Plain
    Actuator Type
    6mm Dia Round End
    ECCN
    EAR99
    Shaft Diameter
    6 mm
    Rotational Life (Cycles Min)
    -
    Orientation
    Vertical
    Mounting Type
    Chassis Mount
    Size / Dimension
    22.6 mm
    Minimum Operating Temperature
    - 40 C
    Series
    AEAT-60xx
    Type
    Absolute
    With Switch
    Without Switch
    IP Rating
    -
    Operating Supply Voltage
    5 VDC
    Life
    -
    Pulses per Revolution
    1024
    HTSUS
    8543.70.4500
    Package
    Bulk
    USHTS
    8543704500
    Resolution
    10 bit
    Base Product Number
    AEAT-6010
