Analog Devices Inc.

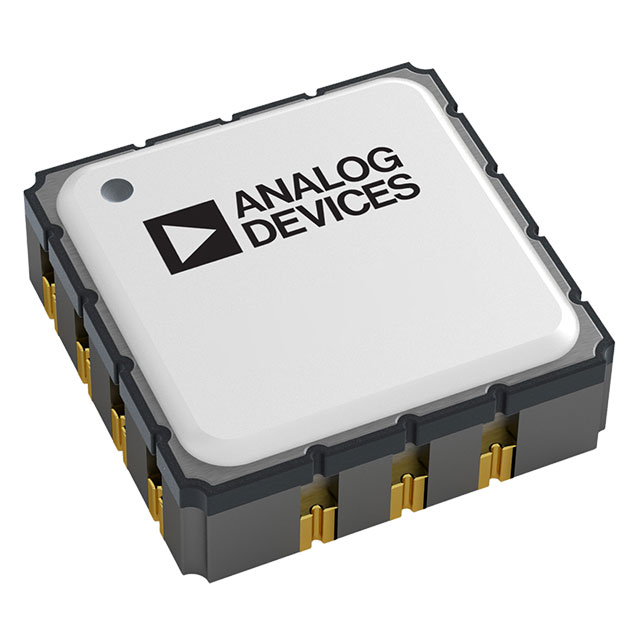

ADXL356BEZ-RL
Sensors
ADXL356BEZ-RL
54-ADXL356BEZ-RL
ACCEL 10-20G ANALOG 14CLCC
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Module/IC Classification
IC
PPAP
No
Product Status
Active
RoHS
RoHS Compliant By Exemption
Automotive
No
Supplier Package
CLLCC
Package / Case
14-CLCC
Sensor Type
3-axis
Voltage - Supply
2.25V ~ 3.6V
REACH Status
REACH Unaffected
Device Sensitivity Range
36.8mV/g to 43.2mV/g|73.6mV/g to 86.4mV/g
Maximum Operating Supply Voltage (V)
3.6
EU RoHS
Compliant with Exemption
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Operating Temperature
-40°C ~ 125°C (TA)
ECCN
EAR99
Mounting Type
Surface Mount
Standard Package Name
LCC
Pin Count
14
Mounting
Surface Mount
Lead Shape
No Lead
SVHC
Yes
Typical Operating Supply Voltage (V)
2.5
HTSUS
8542.39.0001
Package
Tape & Reel (TR)
USHTS
9031808085
Resolution
20 bit
PCB changed
14
HTS
8542.39.00.60
Output Type
Analog Voltage
Sensitivity (LSB/g)
-
ECCN (US)
EAR99
Supply Voltage - Min
2.25 V
Supplier Device Package
14-CLCC (6x6)
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
125
Operating Supply Current
150 uA
Bandwidth
1Hz ~ 1kHz
Package Height
2.2
Mfr
Analog Devices Inc.
Features
Adjustable Bandwidth, Selectable Scale
Axis Type
Triple
Maximum Operating Temperature
+ 125 C
Supply Voltage - Max
3.6 V
Interface Type
I2C, SPI
Axis
X, Y, Z
RoHS Status
ROHS3 Compliant
Mounting Style
SMD/SMT
SVHC Exceeds Threshold
Yes
Package Length
6
Acceleration (g)
±10/±20
Sensitivity (mV/g)
40 (±20g) ~ 80 (±10g)
Acceleration Range
±10g, ±20g
Minimum Operating Temperature
- 40 C
Series
ADXL356
Type
Analog
Sensitivity
80 mV/g, 40 mV/g
Part Status
Active
Sensing Axis
X, Y, Z
Package Width
6
Acceleration
10 g, 20 g
Base Product Number
ADXL356
Minimum Operating Supply Voltage (V)
2.25
