Grayhill, Inc.
71BD36-3119
Sensors
71BD36-3119
54-71BD36-3119

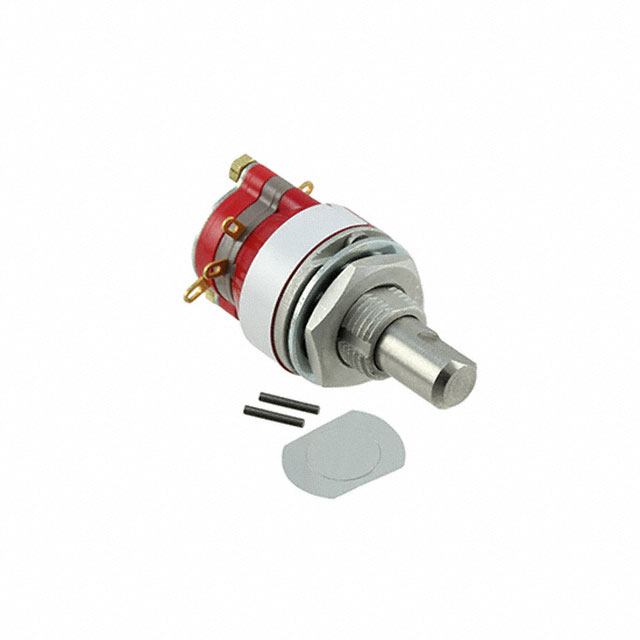

ENCODER MECHANICAL 1/4 IN ADJ
In Stock : 27
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $43.03000
- $43.03
- 10+
- $36.14500
- $361.45
- 100+
- $30.91250
- $3091.25
ADD TO CART
QUICK ORDER
$43.03000
$43.03
Tech Specifications
Unit Weight
0.352740 oz
Product
Encoders
Encoder Type
-
PPAP
No
Built in Switch
Yes
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Product Length (mm)
19.05
Number of Channels
4
Technology
Mechanical
Voltage - Supply
-
REACH Status
REACH Unaffected
Typical Operating Supply Voltage
30VDC
EU RoHS
Compliant
Shaft Style
Flat
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination Style
Solder Lug
Terminal Type
Solder Lug
ECCN
EAR99
Rotational Life (Cycles Min)
25K
Orientation
User Selectable
Mounting Type
Panel, PCB Through Hole
Mounting
Panel Mount
With Switch
Without Switch
Maximum Operating Torque (N.m)
0.113
Life
25000 Cycle
Pulses per Revolution
-
HTSUS
8536.50.9020
Package
Bulk
USHTS
8543704500
Programmability
No
HTS
8543.70.98.60
Output Type
Binary Coded Decimal (BCD)
ECCN (US)
EAR99
Detent
No
Mfr
Grayhill Inc.
Shaft Diameter (mm)
6.35
Product Depth (mm)
19.05
Mechanical Life (Cycles)
50000
RoHS Status
ROHS3 Compliant
Encoder Code
Binary
Mounting Style
Panel Mount
Motion
Rotary
Shaft Type
D / Flatted
Actuator Type
Shaft
Shaft Diameter
1/4 in
Series
71
Type
Absolute
Body Orientation
Straight
Operating Supply Voltage
30 VDC
Product Height (mm)
36.78
Part Status
Active
Base Product Number
71BD36
71BD36-3119 Documents
Download datasheets and manufacturer documentation for 71BD36-3119
