Grayhill, Inc.

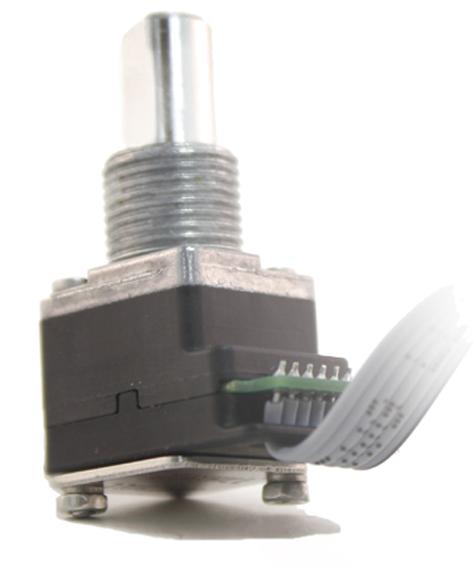

68A113Q-L9S-P

Name: 68A113Q-L9S-P
Brand: Grayhill, Inc.
SKU: 54-68A113Q-L9S-P
Availability: InStock
Rating: 4.7 (9 reviews)

Sensors

Manufacturer Grayhill, Inc.

Mfr. Part #: 68A113Q-L9S-P

Apmheo Part #: 54-68A113Q-L9S-P

Datasheet:

Grayhill, Inc.-68A113Q-L9S-P-datasheets-902539.pdf

Description: 68A113Q-L9S-P

In Stock : Please Submit RFQ TO US

Need wholesale pricing? Send RFQ now for the best rates and immediate response.

QUICK RFQ

ADD TO RFQ LIST

Jump to: Description Tech Specifications Documents Shopping Guide

Tech Specifications

HTS

8543.70.98.60

Output Type

Push-Pull

ECCN (US)

EAR99

Encoder Type

Magnetic

Magnetic Pick-Up

Hall Effect

Built in Switch

Yes

Maximum Operating Speed

100r/min

Product Status

Active

RoHS

RoHS Compliant

Minimum Operating Temperature (°C)

-40

Maximum Operating Temperature (°C)

Product Length (mm)

12.7

Number of Channels

Voltage - Supply

3V ~ 3.6V

Detent

Yes

Typical Operating Supply Voltage

3.3VDC

Mfr

Grayhill Inc.

Shaft Diameter (mm)

6.34

EU RoHS

Compliant

Shaft Style

Flat

RoHS Status

ROHS3 Compliant

Encoder Code

Quadrature

Motion

Rotary

Encoder Signal

Digital Square Wave

Termination Style

Pin Strip

Actuator Type

1/4" Dia Flatted End

Encoder Reading

Incremental

Terminal Type

PC Pin

ECCN

EAR99

Maximum Operating Supply Voltage

3.6VDC

Rotational Life (Cycles Min)

Orientation

Vertical

Mounting Type

Panel, PCB Through Hole

Mounting

Through Hole

Series

68A

Body Orientation

Straight

Number of Terminals

Minimum Operating Supply Voltage

3VDC

Maximum Operating Torque (N.m)

0.014

Product Height (mm)

33.71

Part Status

Active

Pulses per Revolution

HTSUS

8543.70.4500

Package

Bulk

USHTS

8543704500

Programmability

68A113Q-L9S-P Documents

Download datasheets and manufacturer documentation for 68A113Q-L9S-P
