Grayhill, Inc.
62SG15-L5-040C
Sensors
62SG15-L5-040C
54-62SG15-L5-040C

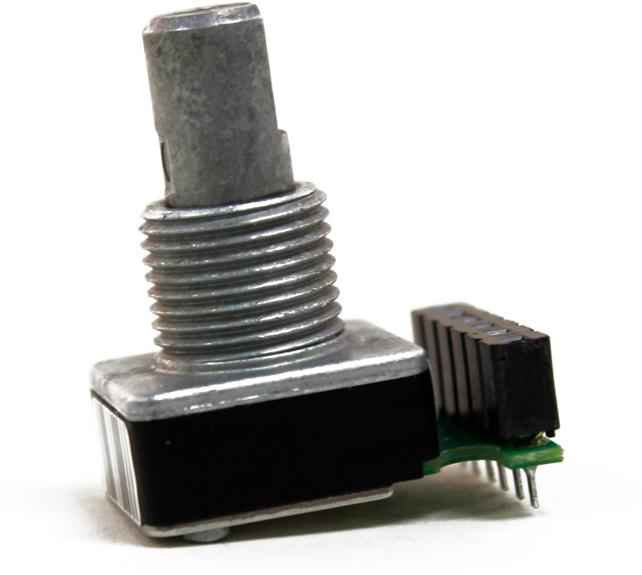

ROTARY ENCODER OPT 24PPR 10"
In Stock : Please Submit RFQ TO US
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
Tech Specifications
Encoder Type
Incremental
PPAP
Unknown
Built in Switch
Yes
Product Status
Active
RoHS
RoHS Compliant
Automotive
Unknown
Product Length (mm)
12.7
Number of Channels
2
Voltage - Supply
5V
REACH Status
REACH Unaffected
Typical Operating Supply Voltage
5VDC
EU RoHS
Compliant
Shaft Style
Flat
Moisture Sensitivity Level (MSL)
Not Applicable
Encoder Signal
Digital Square Wave
Termination Style
Cable with Connector
Terminal Type
Connector
ECCN
EAR99
Maximum Operating Supply Voltage
5.25VDC
Rotational Life (Cycles Min)
1M
Orientation
Vertical
Mounting Type
Panel Mount
Mounting
Panel Mount
Shock Rating
100G
Maximum Operating Torque (N.m)
0.008
Pulses per Revolution
24
HTSUS
8543.70.4500
Package
Bulk
USHTS
8543704500
Programmability
No
HTS
8543.90.88.85
Output Type
Gray Code (Absolute)
ECCN (US)
EAR99
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
85
Detent
Yes
Mfr
Grayhill Inc.
Shaft Diameter (mm)
6.32
Product Depth (mm)
14.73
Mechanical Life (Cycles)
1000000
RoHS Status
ROHS3 Compliant
Encoder Code
Quadrature
Motion
Rotary
Actuator Type
6.32mm Dia Flatted End
Encoder Reading
Incremental
Series
62SG
Type
Compact Encoder
Body Orientation
Straight
Minimum Operating Supply Voltage
4.75VDC
Product Height (mm)
24.87
Part Status
Active
Base Product Number
62SG15
62SG15-L5-040C Documents
Download datasheets and manufacturer documentation for 62SG15-L5-040C
