Littelfuse
59140-010
Sensors
59140-010
54-59140-010

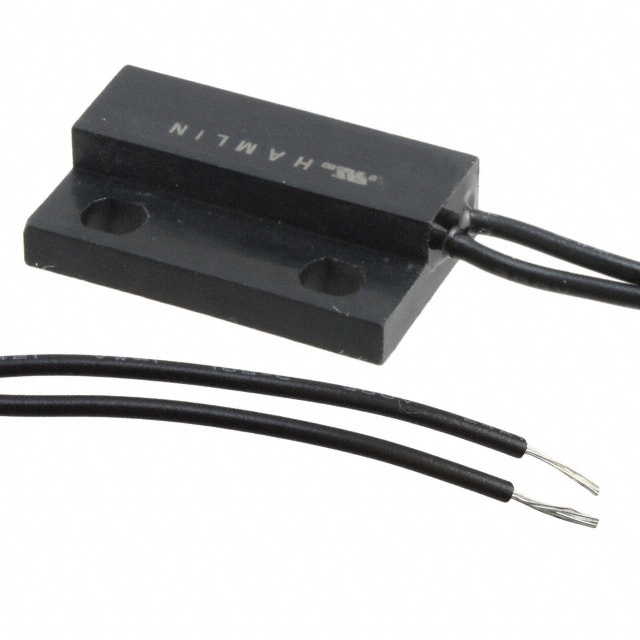

SENSOR REED SW SPST-NO W LEADS
In Stock : 3591
Need wholesale pricing? Send RFQ now for the best rates and immediate response.
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $2.19216
- $2.19
- 10+
- $2.03456
- $20.35
- 100+
- $1.84829
- $184.83
- 1000+
- $1.77325
- $1773.25
ADD TO CART
QUICK ORDER
$2.19216
$2.19
Tech Specifications
Unit Weight
0.211500 oz
Sensing Distance
10.4 mm
Module/IC Classification
Module
PPAP
No
Product Status
Active
RoHS
RoHS Compliant
Automotive
No
Tradename
Hamlin
Package / Case
Flange Mount
Voltage - Supply
-
REACH Status
REACH Unaffected
Maximum Operating Supply Voltage (V)
200
EU RoHS
Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Operating Temperature
-40°C ~ 105°C (TA)
Must Release
20.32mm
Termination Style
Wire Leads
Terminal Type
Leadwire
ECCN
EAR99
Pin Count
2
Barrel Size
23 mm x 14 mm x 6 mm
Mounting
Screw
HTSUS
8536.50.9065
Package
Bulk
USHTS
8536509065
PCB changed
2
HTS
COMPONENTS
Output Type
SPST-NO
Sensing Distance Range (mm)
2 to 7
ECCN (US)
EAR99
Output Configuration
SPST-NO
Sensing Method
Magnetic
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
105
Description/Function
Mini flange mount sensor
Operating Supply Current
500 mA
Sensing Distance (mm)
4.44
Mfr
Littelfuse Inc.
Height
6 mm
Maximum Operating Temperature
+ 105 C
Supply Voltage - Max
200 V
Width
14 mm
RoHS Status
ROHS3 Compliant
Mounting Style
Flange Mount
Switching Mode
NO
DC Supply Voltage (V)
200(Max)
Must Operate
4.44mm
Minimum Operating Temperature
- 40 C
Series
59140
Type
Reed Switch
Length
23 mm
Body Style
Rectangular
Operating Supply Voltage
140 VAC, 200 VDC
Part Status
Unconfirmed
Actuator Material
Magnet
59140-010 Documents
Download datasheets and manufacturer documentation for 59140-010
